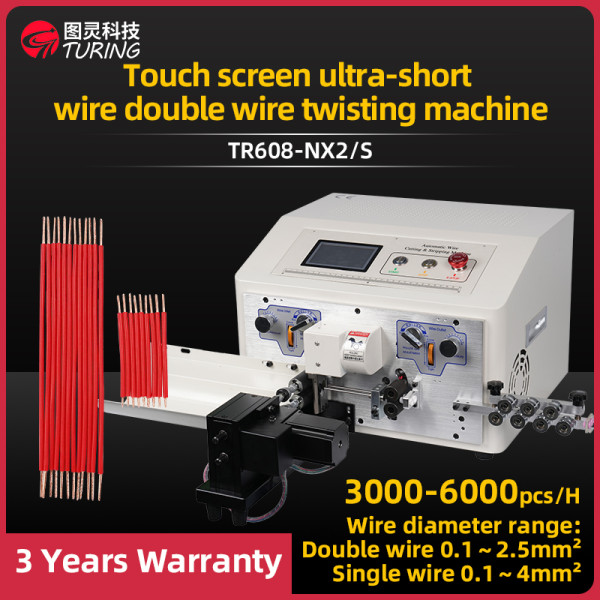

TR608-NX2/S touch screen ultra-short wire double wire twisting machine
TR608-NX2/S touch screen ultra-short wire double wire twisting machine
Detail Information
TR608-NX2/S touch screen ultra-short wire double wire twisting machine
Power supply power: AC220/110V 50/60HZ, rated 350W
Display: 4.3-inch Chinese and English switching touch screen
Stripping length: wire head:0-30mm, wire tail:0-20mm
Cutting length: 1~9999mm
Cutting core section: double line 0.1~2.5mm², single line 0.1~4mm²
Maximum diameter of conduit: ¢6
Twisted wire way: double twisted wire, can also be single twisted wire
Suitable for stripping wire: PVC, Teflon, glass wire
Stripping speed: 3000-6000 pcs/hour (L=100mm)
Driving mode: four-wheel drive (silent hybrid stepping motor, each step forward 0.1mm)
Dimension:460x470x325mm
Cutting tolerance: (0.002xL)mm
Blade material: hard tungsten steel
Warranty: 3 years
