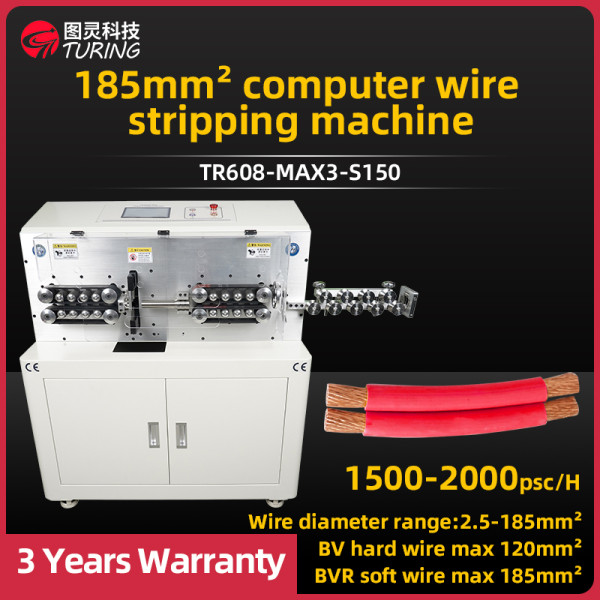

TR608-MAX3-S150 185mm² Computerized Wire Stripping Machine

Display mode: 7-inch Chinese and English switching touch screen

Processing round sheath outer diameter: the maximum cutting and stripping of the outer diameter of 25mm round sheath below

Processing maximum cross-sectional area: 2.5-185mm², BV hard line maximum 120mm², BVR soft line maximum 185mm².

Stripping accuracy: ±0.2mm

Cutting length: Maximum 400m

Round jacket stripping length: full stripping at the beginning of the line (1-500mm) full stripping at the end of the line (1-300mm)

Stripping length: head stripping 1-100mm, tail stripping 1-100mm

Stripping speed: 1500-2000 pcs/hour (L=200mm)

Driving mode of inlet and outlet wire wheel: silk rod motor lifting wheel, inlet and outlet wire pressure wheel up and down automatic adjustment

Driving mode: 8 wheels belt drive (silent hybrid stepping motor, each step forward 0.1mm)

Driving method of tool holder: servo motor driver, ball grinding screws

Appearance size: 1260x830x1170mm

Maximum diameter of conduit: ¢27

Blade material: imported high-speed steel

Warranty: 3 years
