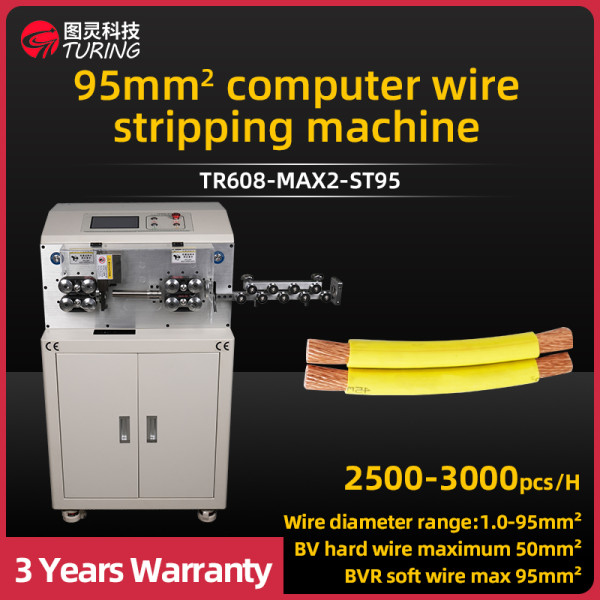

TR608-MAX2-ST95 95mm² Computerized Wire Stripping Machine
TR608-MAX2-ST95 95mm² Computerized Wire Stripping Machine
Detail Information
TR608-MAX2-ST95 95mm² Computerized Wire Stripping Machine
Power supply power: AC220/110V 50/60HZ, 1500W
Display mode: 7-inch Chinese and English switching touch screen
Processing round sheath outer diameter: Maximum cut peeling outer diameter of 18mm round sheath below
Processing maximum cross-sectional area: 1.0-95mm², BV hard line maximum 50mm², BVR soft line maximum 95mm².
Stripping accuracy: ±0.2mm
Cutting length: Max. 100m
Stripping length of round jacket: full stripping of wire head (1-200mm), full stripping of wire tail (1-150mm)
Stripping length: head stripping 1-100mm, tail stripping 1-100mm
Stripping speed: 2500-3000 pcs/hour (L=200mm)
Inlet and outlet wire wheel drive mode: silk rod motor lifting wheel, inlet and outlet wire pressure wheel up and down automatic adjustment
Driving mode: 8 wheels belt drive (silent hybrid stepping motor, each step forward 0.1mm)
Appearance size: 675x600x1180mm
Maximum diameter of conduit: ¢22
Blade material: imported high-speed steel
Warranty: 3 years
