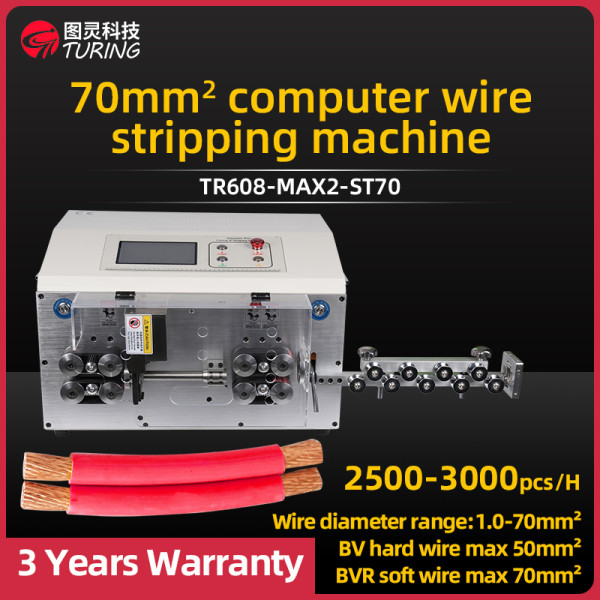

TR608-MAX2-ST70 70mm² Computerized Wire Stripping Machine
TR608-MAX2-ST70 70mm² Computerized Wire Stripping Machine
Detail Information
TR608-MAX2-ST70 70mm² Computerized Wire Stripping Machine
Power supply power: AC220/110V 50/60HZ, 1000W
Display mode: 7-inch Chinese and English switching touch screen
Processing round sheath outer diameter: Maximum cutting and stripping outer diameter of 15mm or less round sheath
Processing maximum cross-sectional area: 1.0-70mm², BV hard line maximum 50mm², BVR soft line maximum 70mm².
Stripping accuracy: ±0.2mm
Cutting length: Max. 100m
Stripping length of round jacket: full stripping of wire head (1-200mm) full stripping of wire tail (1-150mm)
70 square stripping length: head stripping 1-100mm, tail stripping 1-100mm
Stripping speed: 2500-3000 wires/hour (L=200mm)
Inlet and outlet wire wheel drive mode: silk rod motor lifting wheel, inlet and outlet wire pressure wheel up and down automatic adjustment
Driving mode: 8 wheels belt drive (silent hybrid stepping motor, each step forward 0.1mm)
Dimension: 650x570x425mm
Maximum diameter of conduit: ¢20
Blade material: imported high-speed steel
Warranty: 3 years
