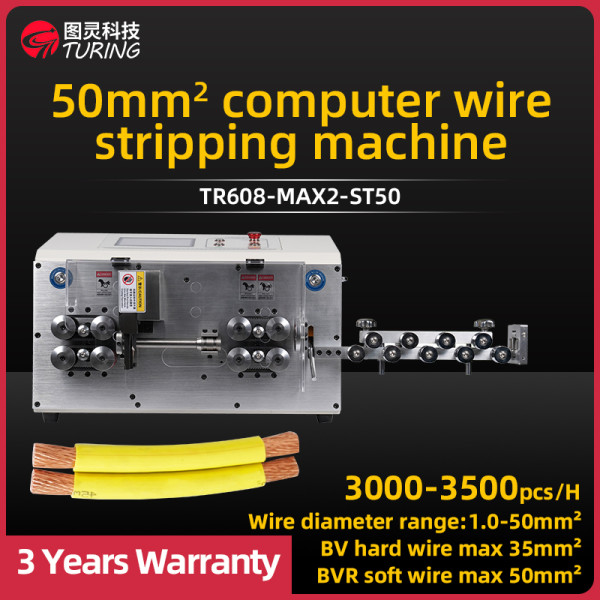

TR608-MAX2-ST50 50mm² Computerized Wire Stripping Machine
TR608-MAX2-ST50 50mm² Computerized Wire Stripping Machine
Detail Information
TR608-MAX2-ST50 50mm² Computerized Wire Stripping Machine
Power supply: AC220/110V 50/60HZ, 800W
Display mode: 7-inch Chinese and English switching touch screen
Processing round sheath outer diameter: the maximum cutting and stripping of the outer diameter of 13mm round sheath below
Processing maximum cross-sectional area: 1.0-50mm², BV hard line maximum 35mm², BVR soft line maximum 50mm².
Stripping accuracy: ±0.2mm
Cutting length: Max. 100m
Stripping length of round jacket: full stripping of wire head (1-200mm) full stripping of wire tail (1-150mm)
Stripping length: head stripping 1-100mm, tail stripping 1-100mm
Stripping speed: 3000-3500 pcs/hour (L=200mm)
Inlet and outlet wire wheel drive mode: screw motor lifting wheel, inlet and outlet wire pressure wheel up and down automatic adjustment
Driving mode: 8 wheels belt drive (silent hybrid stepping motor, each step forward 0.1mm)
Appearance size: 650x570x425mm
Maximum diameter of conduit: ¢17
Blade material: imported high-speed steel
Warranty: 3 years
Translated with www.DeepL.com/Translator (free version)
