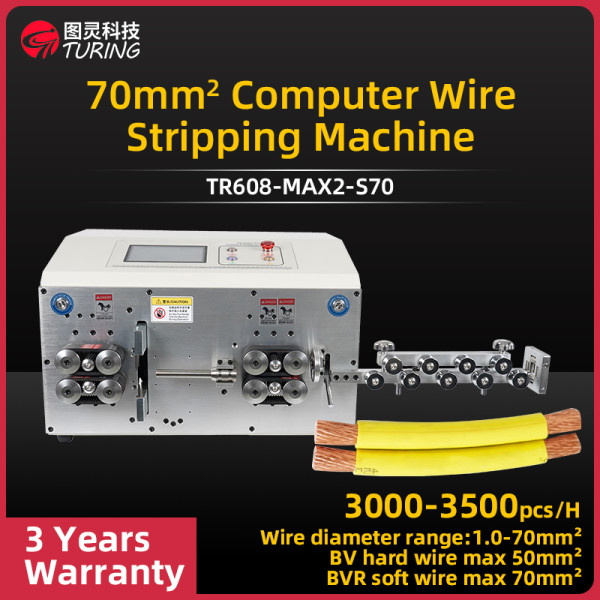

TR608-MAX2-S70 70mm² Computerized Wire Stripping Machine

Display:7-inch Chinese and English switching touch screen

Processing round sheath outer diameter: maximum cut peeling outer diameter of 15 mm round sheath below

Processing maximum cross-sectional area: 1.0-70mm², BV hard line maximum 50mm², BVR soft line maximum 70mm².

Stripping accuracy: ±0.2mm

Cutting length: Max. 100m

Round jacket stripping length: wire head full stripping (1-200mm) wire tail full stripping (1-150mm)

70 square stripping length: head stripping 1-100mm, tail stripping 1-100mm

Stripping speed: 3000-3500 pcs/hour (L=200mm)

Inlet and outlet wire wheel drive mode: screw motor lifting wheel, inlet and outlet wire pressure wheel up and down automatic adjustment

Driving mode: 8 wheels belt drive (silent hybrid stepping motor, each step forward 0.1mm)

Driving method of tool holder: servo motor driver, ball grinding screws

Dimension: 650x570x425mm

Maximum diameter of conduit: ¢20

Blade material: imported high-speed steel

Warranty: 3 years
