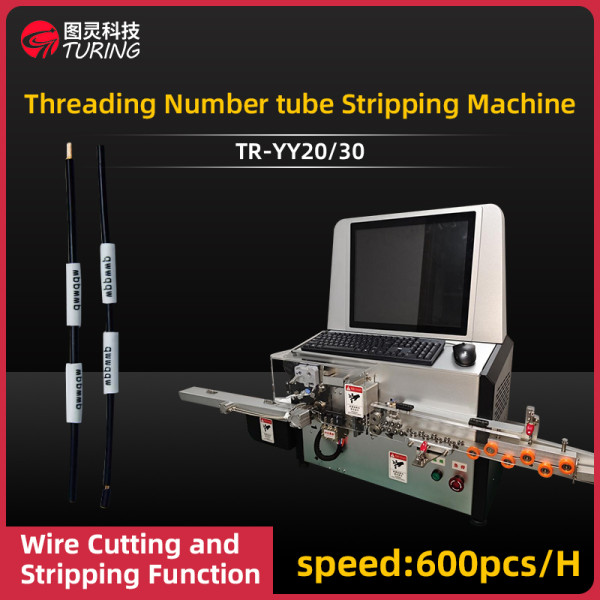

TR-YY20/30 Threading Number tube Stripping Machine

Power supply: 220VAC/50Hz 1000W

Opening speed: 600 / hour (tube length of 20mm or so with the same code, line length of 800mm as an example)

Number tube length: 20mm or 30mm (other tube lengths need to be customized)

Software operating environment: windows 7, windows 10, exce control mode: all-in-one computer, PC software control

Input mode: PC software direct input or Excel import

Connection: USB and RS232 serial port

Casing options: casing or no casing

The use of wire range: 2.5-6mm ² national standard conventional BVR class insulated wire, plastic insulation diameter ± 0.1mm

Scope of application: number tube printing module, Za wire release module, cutting and stripping module, casing module, the first end of the wire head deflating module, the hub device, exce report data organization and preservation.
