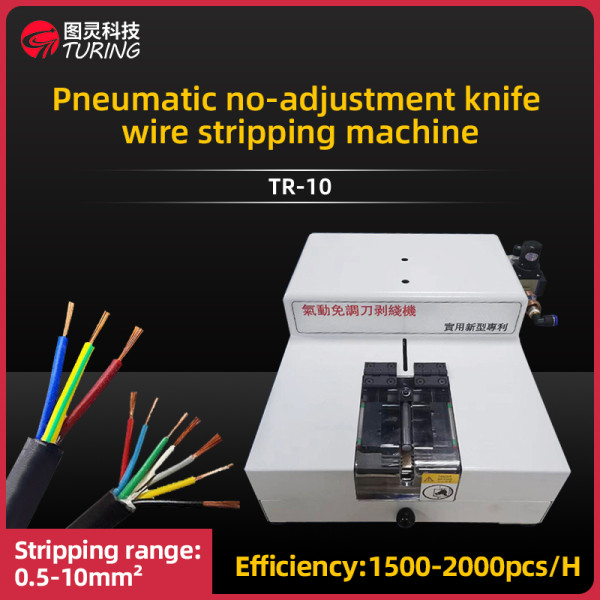

TR-10 Pneumatic no-adjustment knife wire stripping machine

Working air pressure: 0.4-0.75MPa

Stripping range: 0.5-10mm²

Weight: 24kg

Size: 400x370x200mm

Stripping length: 2-50mm

Production capacity: 1500-2000 strips/hour

Suitable for stripping electronic cables, multi-core cables, power cables, sheathed cables and sheathed cores of different diameters.

1, the utility model of pure pneumatic induction design, no power supply, thick and thin wire cutter free of change and free of adjustment.

2, the cutter adopts four pieces of 90. cross way, peeling clean and neat, to avoid the two pieces of cross cutter caused by the incision is not flat, easy to hurt the core wire and conductor bending.

3、Cutting depth only simple fine-tuning, peeling length, full peeling, half peeling easy to grasp

4, the machine structure is compact and reasonable, easy to operate.

5、This machine is suitable for all kinds of electronic wire, power cord sheathed wire and different wire diameter sheathed core wire stripping.
