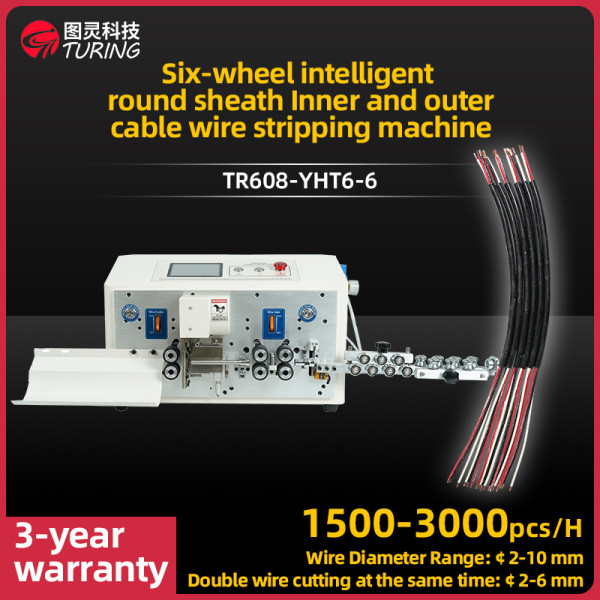

TR-608-YHT6-6 Six-wheel intelligent round sheath Inner and outer cable wire stripping machine
TR-608-YHT6-6 Six-wheel intelligent round sheath Inner and outer cable wire stripping machine
Detail Information
TR-608-YHT6-6 Six-wheel intelligent round sheath Inner and outer cable wire stripping machine
Size: 560mm × 460mm × 365mm
Weight: 45KG Power: 550W
Power supply: 220V/110V 50HZ/60HZ
Display mode: Chinese and English operation interface can be switched with each other (using a 5-inch touch screen)
Processing round sheath outer diameter: ¢ 2-10 mm double line cutting at the same time peeling: ¢ 2-6 mm
Processing the number of cores: 2-core, 3-core, 4-core, 5-core
Air pressure: 0.8Mpa
Maximum diameter of conduit: ¢ 11
Stripping accuracy: ± 0.2mm Stripping core length: head stripping 0-20MM, tail stripping 0-20MM
Cutting length: Maximum 100m
Round sheath peeling length: head peeling (1-210mm) tail peeling (1-100mm)
Blade material: imported high-speed steel
Stripping speed: 300mm length unit, 1500-3000 roots / hour
Drive mode: six-wheel drive (silent hybrid stepping motor, each step forward 0.1mm)
