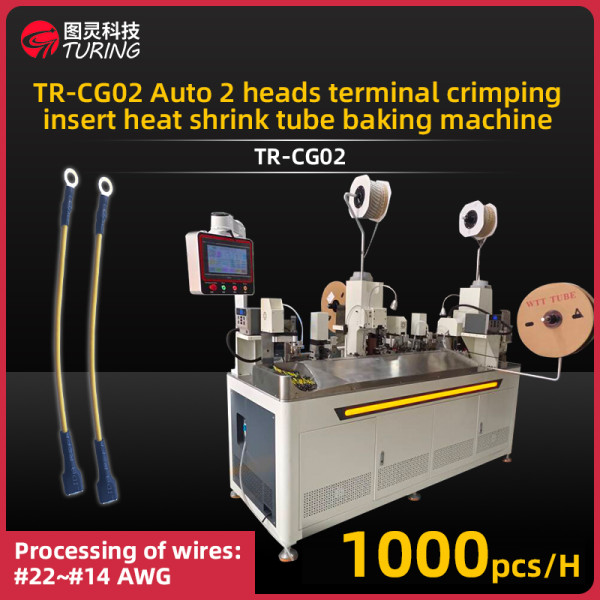

TR-CG02 Auto 2 heads terminal crimping insert heat shrink tube baking machine
TR-CG02 Auto 2 heads terminal crimping insert heat shrink tube baking machine
Detail Information
TR-CG02 Auto 2 heads terminal crimping insert heat shrink tube
baking machine
function：Wires are cut, stripped at one end, stripped at both ends,
crimped at both ends, crimped at both ends and baked in sleeves.
Processing of wires：AWG#22~#14
capacity：Wire length 80-150mm: approx. 1000 pcs/hour.
Special wire: approx. 800 pcs/hour.
Cutting accuracy：Line length below 100mm Error 0.2+(line length x 0.002)
Line length above 100mm Error 0.5+(line length x 0.002)
Processing length：Leave rubber in the middle 66mm~99999mm
Strip length：Front end 0.5~8.0mm; Rear end 0.1~10.0mm
Depth of cut：Max. adjustment 5.50mm, resolution 0.01mm
sensor：Low air pressure, wire presence, abnormal pressure,
abnormal wire entry.
power supply：Single phase AC200V~242V 50/60Hz 10A
compressed air：0.5 MPa (5 kgf / cm2) clean dry gas
Size/Weight：W800 *D1800*H1800 mm, approx. 800KG
