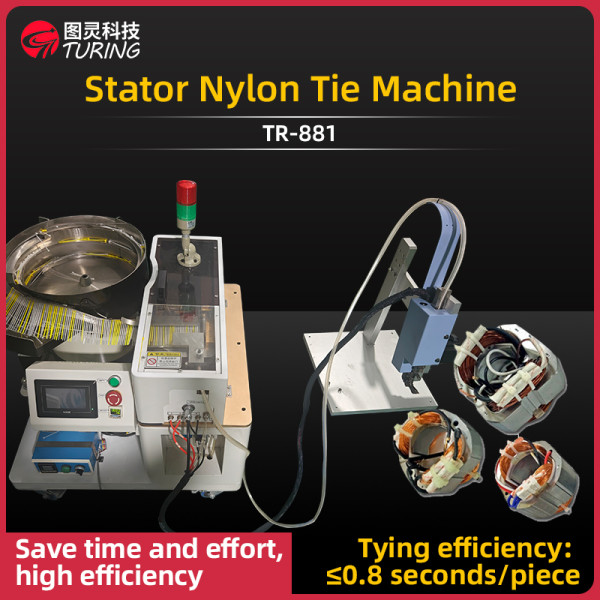

TR-881 Stator Nylon Tie Machine

Categories	Cable Winding and Tying Machine
Brand	Turing
Model	TR-881
Power	Single-phase 220V
Application	Automatic nylon cable tie machine
Feature	Stable Performance
Warranty	1year
Contact	Coco 0086-18666170785
FOB port	shenzhen ,guangzhou ,zhongshan
Terms of Payment	Western Union, MoneyGram, T/T
Download
Update Time	Oct 18,2024

Contact Now

Favorites

Detail Information

TR-881 Stator Nylon Tie Machine

power supply	Single-phase 220V	Voltage range	±10%
compressed air	0.55 ±0.5Mpa	Ties specifications	2.5x100mm
work system	Continuous operation 24 hours a day
operating temperature	0~60℃	Operating humidity	60~95%RH
wire harness diameter	1-18mm	Tie head reserved length	0.5-3mm
Failure rate	≤1‰	Troubleshooting time	≤1s
Tie Tightness Ratio	After the workpiece tie, the tie does not slide, adjustable tightness
Tray holds ties at a time	≤600 pieces	Tightening force range	2~8kg

Widely used in a variety of stator, wire harness, electronic connecting wire, home appliances and other industry positions

This equipment can realize the functions of automatic discharging, feeding, coiling, tightening and cutting of disordered ties as follows:

1、Put the disorderly tie into the automatic discharging device, realize the tie through the pipeline to the gun head;

2, artificial foot pedal to start the foot pedal, to achieve automatic feeding, tape, tightening, cutting and collecting waste and other actions, collecting waste process is strictly prohibited waste material into the two components;

3、Shear the line after the wire tie head to stay tail, minimum 0.5 mm, maximum adjustable tie all the remaining tail material.
