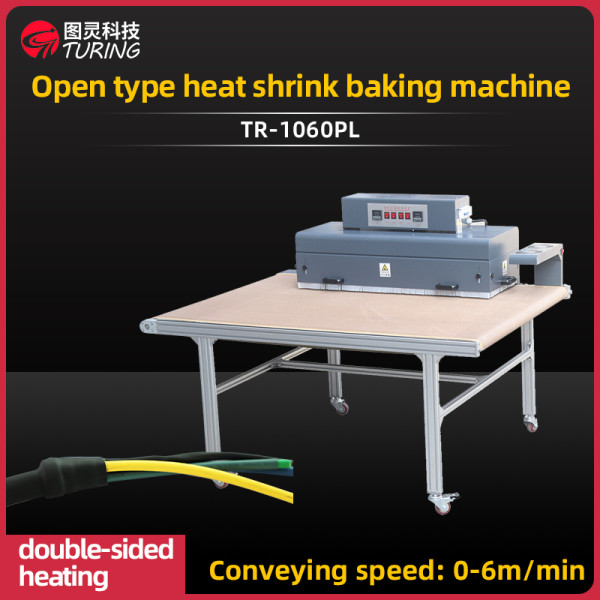

TR-1060PL Open type heat shrink baking machine

Categories	Heat shrink tube baking machine
Brand	Turing
Model	TR-1060PL
Power	AC220V/50HZ,
Application	Semi-automatic Heat Shrink Tube Baking Machine
Feature	Stable Performance
Warranty	1year
Contact	Coco 0086-18666170785
FOB port	shenzhen ,guangzhou ,zhongshan
Terms of Payment	Western Union, MoneyGram, T/T
Update Time	Nov 23,2024

Contact Now

Favorites

Detail Information

1, the machine uses heat radiation heating tube heat, up and down the left and right are installed heating tube, can be heated at the same time; and is equipped with high-speed centrifugal fan, heating fan can be stirred evenly heat, so that the entire box to maintain a constant temperature; need to heat shrinkage, baking products can be surrounded by simultaneous heating, maintaining the original characteristics of the product, so that the product heat shrinkage, baking, no deformation, no discolouration, quality and stability;

2, the use of high temperature Teflon mesh belt (temperature 0 ~ 350 °), assembly line mode feeding, baking speed, high efficiency;

3, aluminium alloy profile structure mode, can be arbitrarily customized and modified mechanical dimensions and structure, and compact model structure, compact design, but also can be arbitrarily moved to docking production line and production line synchronous control;

4, intelligent control system, heating temperature and speed can be adjusted at will, can adapt to the temperature of different products and heat shrinkage time requirements;

5, independent control box, away from high temperature; heating box double layer design, the middle of the sandwich with high temperature insulation cotton (temperature 1200 °), so that the box temperature will not overheat the exterior, not only to make the working environment comfortable, but also reduce energy waste.

6, the surface of the conveyor belt is installed with air-avoiding guide strip, effectively avoiding the contact between the product and the mesh belt, so that the product is no mark after heat shrinkage.
