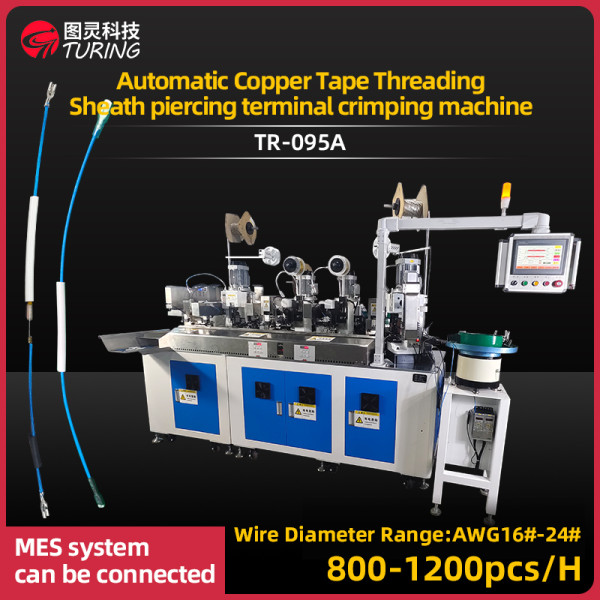

TR-095A Fully automatic copper strip threading tube and sheath terminal crimping machine Resistance riveting machine

power supply:6.0KW

Display Mode :Colour LCD touch screen

running mode:Automatic operation + manual operation

Cutting line length:≥40mm

Casing length:≥80mm (can be customised)

Strip length:0.1-16mm

processing speed :About 800-1200PCS/H

size:2500*900*1800mm

weight:1200KG

pneumatic:0.5Mpa-0.65Mpa

Wire Diameter:AWG16#-24#machine

riveting pressure:2.0T/3.0T

1. The machine can be connected to the MES system to achieve quality management tracking.

2. The machine has the function of storing work order and product parameter data, and the material number is convenient for switching production;

3. Moulds with strong versatility, can be adapted to OTP moulds, Japanese, European and other terminal machine card moulds.

4. Adopt vibrating plate to convey bulk materials: terminal sheath, resistor, fuse, fuse (tape materials can be customised)

5. Can be equipped with pressure monitoring system, the whole process of monitoring the quality of crimping products, more effective distinction between good and bad products.

6. Can be equipped with industrial computer operating system, can quickly grasp the machine's processing status, all parameters can be easily set and stored, the operating instructions to image a more intuitive, simple display.

7. Equipped with automatic unwinding machine, so that the wire conveying smooth, no knots, no damage to the surface of the wire, to improve the precision of the wire feeding 8. Full automation to complete the production, improve work efficiency and product quality, and also save labour costs.
