TR-388DZ Fully automatic double-head crimping enadouble-head inserting shellsingle-head threading hydrant machine

Categories	Plastic Shell Terminal Crimping Machine
Brand	Turing
Model	TR-388DZ
Power	AC220V/50HZ
Scope of processing	0.35-2 mm²
Feature	Stable Performance
Warranty	1year
FOB port	shenzhen ,guangzhou ,zhongshan
Terms of Payment	Western Union, MoneyGram, T/T
Download
Update Time	Oct 18,2024

Contact Now

Favorites

Detail Information

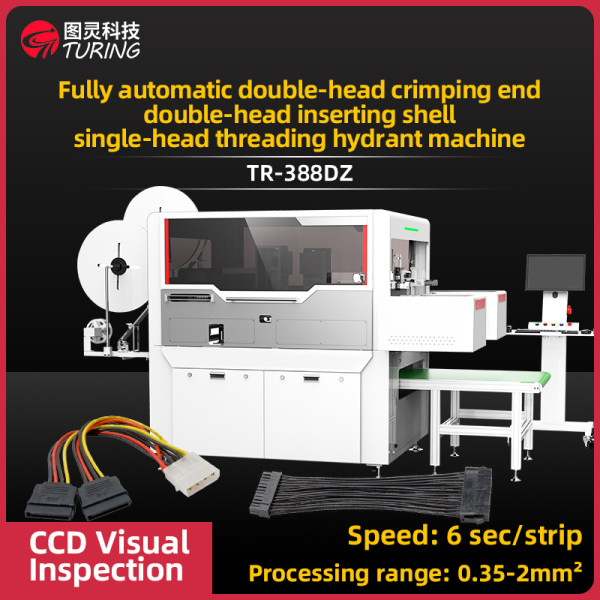

TR-388DZ Fully automatic double-head crimping enddouble-head inserting shellsingle-head threading hydrant machine

Power supply : 220V 4900W

Size&weight : 1600mm*2200mm*2050mm,Approx. 1000kg

Scope of processing : 0.35-2 mm² (to be confirmed by sample)

Wire processing length : 140mm-600mm (length accuracy: 0.003*L length)

Strip length : 0--10mm at both ends (special sizes can be altered)

Detection function : Visual Inspection, Missing Line Inspection, Air Pressure Inspection, Take-up Inspection, Draw Inspection, Pressure Inspection

Air pressure : 4.5--6kgf (dry air)

Speed : 6 seconds/root (the actual speed of customised parts is finalis

Multi-functional: ① terminal crimping bad reset will cut off the terminal and then the next step in the process; ② wire shortage and knot alarm; ③ can be set to wear shells through the bolt position; ④ can be worn at one end of a kind of rubber shells, the other end of the other end to wear the same shells of two.

High quality: ① equipment using servo plus imported slide rail imported high-precision structure configuration, to ensure the stability and durability of the equipment. ② High speed - servo length measurement module, traverse using a screw linkage, to achieve the perfect unity of precision and speed.
