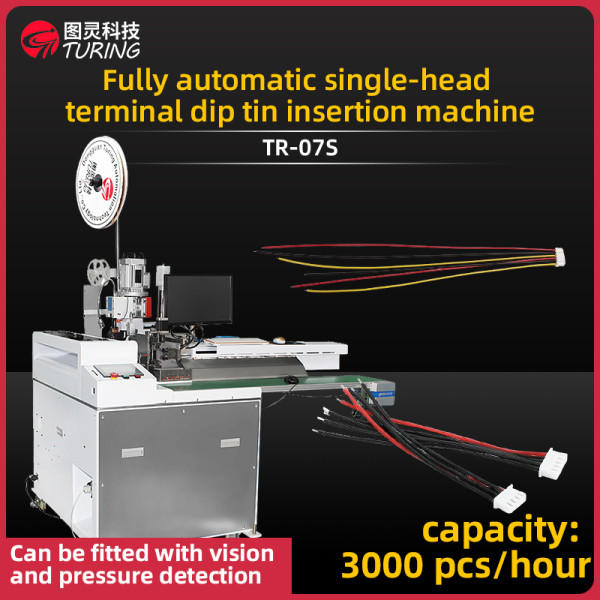

TR-07S Fully automatic single-head terminal dip tin insertion machine

Functions: Terminal punching, cutting, twisting, tin dipping, peeling, and plastic shell piercing

Accuracy: +0.1mm

Detection: Rubber shell detection, peeling detection, air pressure detection, end detection

Outer diameter: AWG#14-AWG#32 (can be modified according to the wire material)

Processing efficiency: 3000+finished products/hour

Cutting line length: 40-918mm (length can be changed)

Peeling length: 1-10mm (can be changed)

Pressure: 2.0-4T

Air pressure: 5MPA-6MPA

Dimensions: 1510x780x1370

Weight: 399KG

5P core wire single end stripped and inserted in shell, 276 articles/hour  5P core wire stripped and shelled at both ends,938articles/hour

Solve the problem that the sheath line can not be automatically inserted into the rubber shell due to theinability to separate the colors.

Sheathed wire automatic stripping corewire terminals Crimp Plug Shelt

Manual color separation and simultaneous insertion of rubbel shells in an orderly manner
