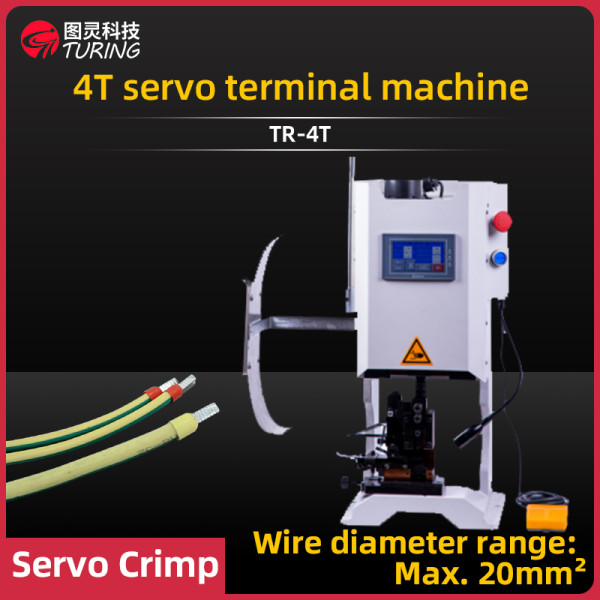

TR-4T semi-automatic 4T servo terminal machine

Wire Diameter Range:max. 20mm²

Pressure capability:4T

Stroke:30mm

Closing height:max.200mm

Weight:About 65kg

Size:350x320x640mm

Power supply:220v50Hz

Power:Motor 1.5kW, work light 1W

Number of times pressed:400Spm

Height adjuster:10mm

Characteristics

1. Spindle drive about 180 degrees (according to the thickness of the termi-nal depending on).2.Height adjustmentis fine-tuned with a touch screen.3.Speed:Pressing a completion speed of 1 second.4.Accuracy of±0.015mm.

5. terminal thickness detection upper limit value 0.03mm, lower limit value-0.03mm (mainly detect: no terminal, whether overlap pressure) can be setto two speed crimping, two crimping speed can be set.6. Pressing to the lower point can be set to hold pressure time.7. Automatic detection of the upper knife to the lower knife travel heightoverlap pressure terminal will be alarmed (to protect the blade function)8.Multiple terminal height setting cycle crimping 1-10.9.Work order storage: 1-10.

Functionality

1.Snap mould, easy to replace, fast and time-saving;2.Stable voltage,fast speed and high accuracy;3. Computer terminals, DC terminals, AC terminals, single grain terminalscontinuous terminals

4. Light structure, easy to move the workplace, operating sound is small5. Suitable for OTp horizontal mould, OTp positive straight mould, OTP re-verse straight mould,2000#,950#mould;
