Terminal Crimping and Wire Harness solution&manufacture

Home / All / Cable/Wire Cutting and Stripping Machine / Computer Wire Stripping Machine /

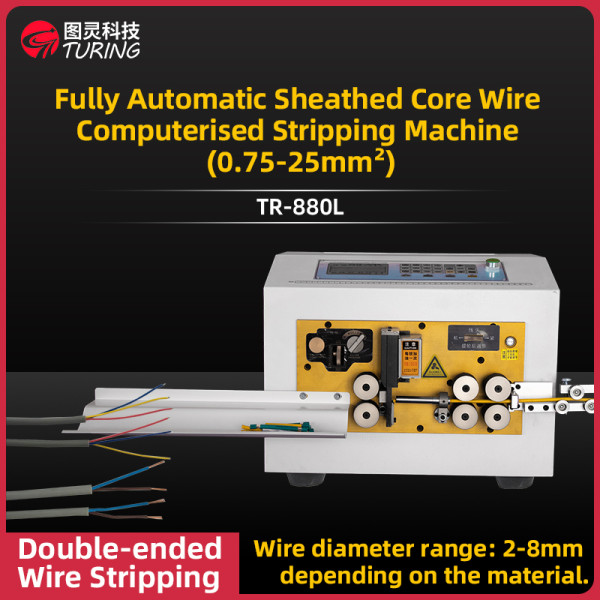

TR-880L Fully Automatic Sheathed Core Wire Computerised Stripping Machine(0.75-25mm2)

Categories	Computer Wire Stripping Machine
Brand	Turing
Model	TR-880L
Power	AC220V/50HZ,
Name	wire stripping machine
Feature	Stable Performance
Warranty	1year
Contact	Coco 0086-18666170785
FOB port	shenzhen ,guangzhou ,zhongshan
Terms of Payment	Western Union, MoneyGram, T/T
Download
Update Time	Dec 4,2024

Contact Now

Favorites

Detail Information

TR-880L Fully Automatic Sheathed Core Wire Computerised Stripping Machine(0.75-25mm²)

Supply Voltage：AC220V/110V 50/60Hz

Pneumatic：0.4-0.6Mpa

Size &weight：450x430x380mm，48kg

Display Mode：English and Chinese colour touch screen

Core wire processing：Inner core wire 1-4 pcs

Length accuracy：±(0.2+0.002L)

Wire Type：Multi-core round sheathed wire, flat sheathed wire

Core wire stripping length：Wire head 1-20mm, wire tail 1-20mm, depending on the wire material

Processing Diameter：2-8mm, depending on the wire

Cutting length：10-9999mm

Outer skin peeling length：Wire head: front 150mm; wire tail: rear end 80mm

Wire feeding method：Inlet pulleys can be fed by belts and rollers, outlet pulleys are only fed by rollers (rubber and iron pulleys)

Feature Description

1. This machine is mainly for round sheath cable, flat sheath cable peeling core wireprocessing, can achieve automatic cut off the tail, peeling the outer skin, peeling theinner core skin function.

2. Adopting belt and roller to feed the wire, large contact area, high precision, noobvious indentation on the surface.

3. Adopting precision stepping motor and control product, subdividing way to con-trol the length, small error.

4. Display mode: colour touch screen interface, Chinese and English can beswitched.

5. Operation mode: automation can be achieved by setting the total length of theline, cut off, peeling the outer skin, peeling the core line, a one-time operation iscompleted, automatically record the output, easy to operate, thus greatly improvingefficiency.

6. The machine is powerful, reserved for a number of ports, for supporting someauxiliary equipment for input and output devices.

7. The standard equipment does not include the release and take-up, according tocustomer demand, can be added to the release machine and automatic push linemachine,robotic take-up machine.
