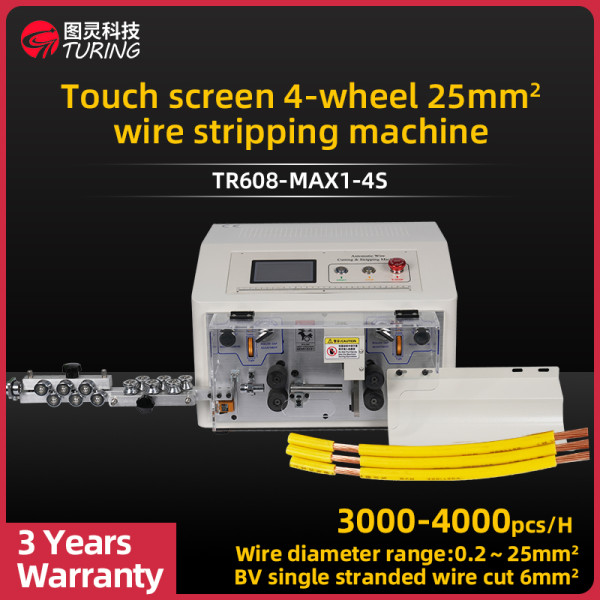

TR-508-MAX1-4/S 4-wheel drive 25 square wire stripping machine
TR-508-MAX1-4/S 4-wheel drive 25 square wire stripping machine
Detail Information
TR-508-MAX1-4/S 4-wheel drive 25 square wire stripping machine
Weight：31KG Power：450W
Electrical connection: 110V/220V 50HZ/60HZ
Operation interface: 4.3 inch Chinese and English switching touch screen display
Machine dimension: 460*470*325mm
Wire length range：1～9999mm
Strip length：Front end:0-30; rear end:0-20mm
Length accuracy： ± (0.002xL)mm
Intermediate peeling times:16 times
Wire cross section: 0.2～25mm² ( BV single strand wire 6mm²)
Max conduit inside diameter:￠11mm
Wire material:PVC,Teflon,Braided,Fiberglass wire
Blade material: High-speed steel
Transport speed: (L=100MM piece/hour） 3000-4000 pieces
Driving mode: four-wheel drive (silent hybrid stepper motor, 0.1mm forward per step)
The fully automatic computerized wire strippingmachine produced byourfactoryis widely used in wire harness processingin variousindustriessuch as wire harnesses,automotive electricalappliances, instruments andmeters, lamps, household appliances, etc., such as: single-stranded wire,multi-stranded wire, sheathed wire, etc.The processing methods are: cutting,strippinghead and tail, middle stripping, bending, twisting, etc.Themaximum processingcross-sectional area is 0.1-90mm2, and the maximumlength ofthe cuttingsection is 100 meters. The main function ofthemachineis to strip the plastic sheath and the metal core of the wire.
