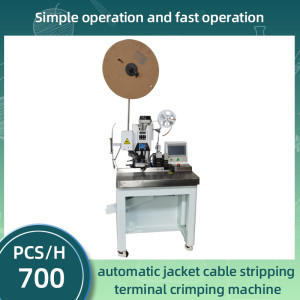

TR-HTA01 automatic sheathed wire single-head tin dipping terminal crimping machine

1.This equipmentis mainly used in the processing of 2-13core sheathed wires for home appliances, equipment,automobiles,electricalcabinets,aerospace,etc. Theefficiency of 13 core is up to 700 pcs/h.

2.The shortest stripping can be up to 18 mm(4 core), thelongest stripping 120 mm.The shortest stripping can be up to 18 mm(4-core), thelongest stripping 120 mm.

3.Servo motor with screw drive, high precision motionsystem.

4.Standardly equipped with CFM pressure device toprotect the blade and strictly control the quality.

5.independent wire splitting device, no need for specialmoulds.

6.Pressure-adjustable wire splitting clamp, protect theinner skin without damage.

7.Self-developed design,software and hardwareintegration,support system maintenance and upgrading

8.Equipment can be equipped with safety guard, wirefeeding and receiving belt, MES system and othercomponents.

Options

1. Tinning module structure

2.Pre-feeding device

3.Servo motor crimping

4.Inverter motor crimping

5.afety guards

6.Take-up line conveyor

7.MES production management system

8.Pressure management monitoring device
