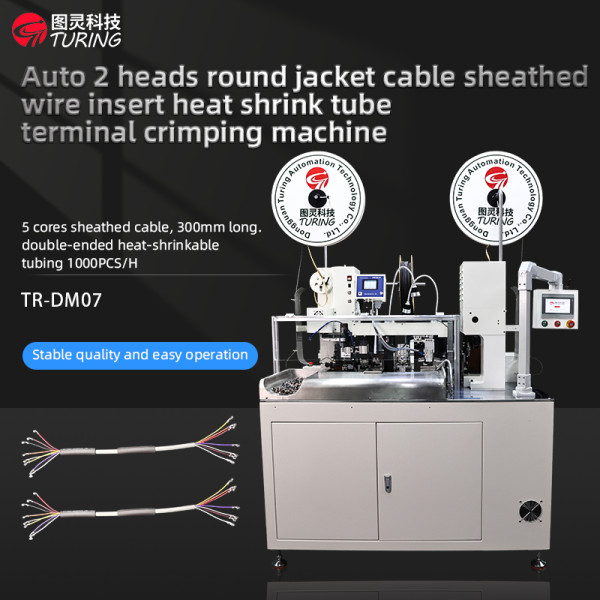

TR-DM07 Auto 2 heads round jacket cable sheathed wire insert heat shrink tube terminal crimping machine

shrink tube terminal crimping machine

Equipment efficiency：1000 pcs/h （5 Pin，L=150 mm）

Cutting accuracy：±（0.1+0.005*L） mm

Applicable wire diameter：AWG# 20-28; OD 3-7mm

pressure capability：20KN

Air source：0.6-0.8Mpa

Stripping length：18-120 mm（4 Pin）

Internal stripping length：0-8 mm

core wire：AWG #20 -#26

environmental temperature：-5 to 40°C

Cutting length：110-9999 mm

Power source：AC220V50/60Hz

Cutting accuracy：Adjustment range 0.5mm + cut length * 0.2% or less

Tube cutting length：0-30 mm (customisable)

power ：3kw

push against travel：30/40 mm

Machine size：L1450*W900*H1860 mm

- Mature and stable, high market share, Gree Midea system validation for many years.

- Can process 2-13 cores multi-core sheathed wire with high efficiency up to 1000 pcs/h.-Equipped with pressure management device as standard to protect the blade andstrictly control the quality.

- Independentwire separation device, compatible with all kinds of OTP moulds, no needfor special moulds.

-Pressure-adjustable splitting clamp, protect the inner skin without damage.

-The pressed terminals can be lined up in the same straight line (notfan-shaped), andthe terminals can be inserted into the rubber case neatly and beautifully.

-Servo motor with screw drive, high precision motion system.

Terminalmachine integrated cast iron, durable, stable crimping.

-Touch screen knife value adjustment, no need to pad knife.

Equipment recipe one-key storage, quick recall.

CNC interface,simple to learn and use.

- Can be added with safety shield, wire feeding and receiving belt, MES system andother components.
