TR-Y64 Fully Automatic 64 Cavities Dental Floss Machine with High Quality Injection Machine

Coordinate with injection machine：35-85T Vertical injection machine

Pull thread stroke：1300mm Adjustable

Vertical stroke:50mm Adjustable

Cavity number of each mold: 20-64 cavities

Thread range:PTFEPolymer,Polyester, Nylon, PTFE

Plastic range:PP、PS、ABS

Power & power consumption:AC220V 50Hz about 12KW/H

Air pressure used:0.5~0.8Mpa

Specific air consumption：About 16L per cycle

Mold cycle time：About 9-13 seconds, depends on products

Depends on products

Depends on products to customize cutting die

Simple structural design, dust proof;

Fully functional, including automatic threads pay-of, embedding, and pulling, taking products, cutting runner, threadshot iron, counting, stacking, 2 stations receiving switch.

Small volume, high flexibility, full automatic for 24H production, high efficiency, suitable for production of a singleproduct of small order quantity and short time of production required

AC servo drive, high speed, high stability.

High sensitive touch screen design, debugging is simple and easy to operate.

Cutting die cavities can be 20 to 64 cavities depending on size of customer’ s sample.

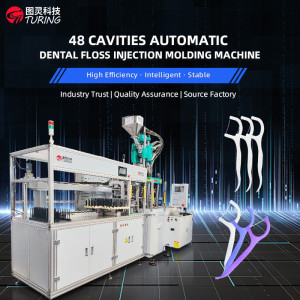

For model with 48 cavities, the daily capacity should be 338,400 pcs ( 5 mold/minute：5*48*60*23.5=338400）
