TR-DM04 Automatic Double-head Wire Stripping Cutting Wear Number Tube Type Terminal Crimping Machine

Categories	Inserting Tube Terminal Crimping Machine
Brand	Turing
Model	TR-DM04
Power	AC220V/50HZ,
Application	Double-head Terminal Machine
Feature	Stable Performance
Warranty	1year
Control	Servo and Step motor
Contact	Lily 0086-13715588365
Function	Wire Stripping Cutting Wear Number Tube terminal
FOB port	shenzhen ,guangzhou ,zhongshan
Terms of Payment	Western Union, MoneyGram, T/T
Download
Update Time	Nov 21,2024

Detail Information

TR-DM04 Automatic Double-head Wire Stripping Cutting Wear Number Tube Type Terminal Crimping Machine

Program brief:

Cutting and stripping the wires, crimping at both ends, printing the number tube, threading the number tube, and baking the number tube

Function introduction:

Wire cutting, single-end stripping, both-end stripping, both-end crimping, double-end crimping and baking number tube

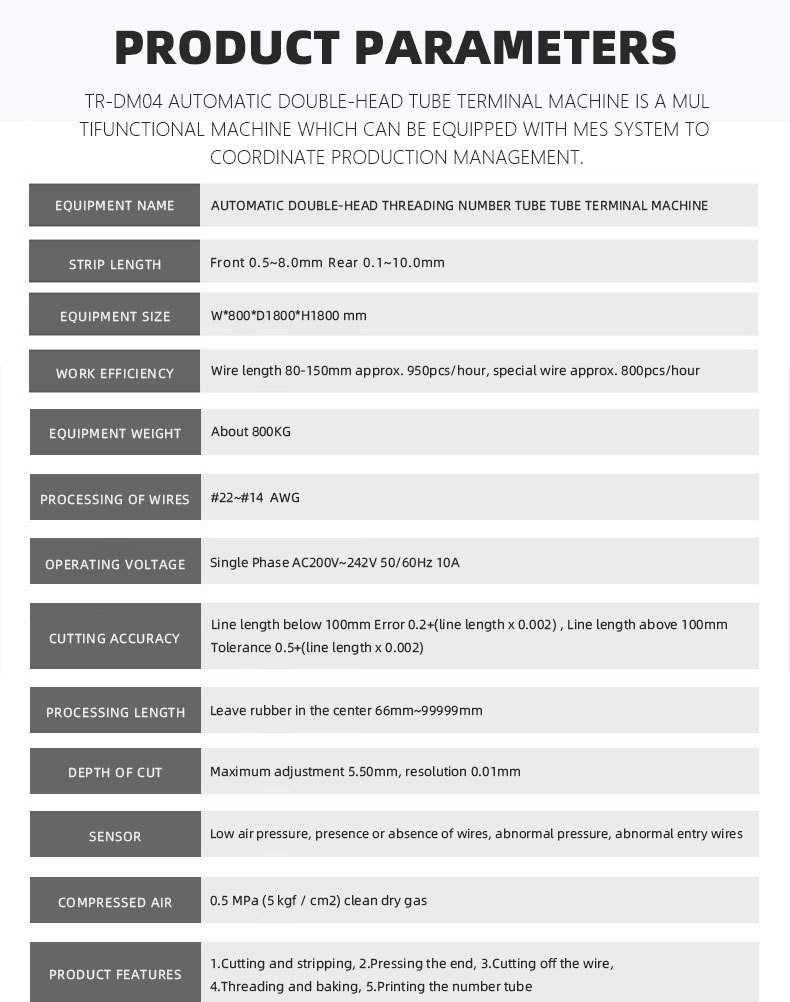

EQUIPMENT NAME	AUTOMATIC DOUBLE-HEAD THREADING NUMBER TUBE TUBE TERMINAL MACHINE
STRIP LENGTH	Front0.5~80mm Rear 0.1~10.0mm
EQUIPMENT SIZE	W800D1800H1800mm
WORK EFFICIENCY	Wire length 80-150mm approx.950pcs/hour, specialwire
EQUIPMENT WEIGHT	About 800KG
PROCESSING OF WIRES	#22~#14AWG
OPERATING VOLTAGE	SinglePhaseAC200V~242V50/60Hz10A
CUTTING ACCURACY	Line length below 100mm Error 0.2+(line length x 0.002), Line length above 100mmTolerance 0.5+(line length x 0002)
PROCESSING LENGTH	Leave rubber in the center 66mm~99999mm
DEPTH OF CUT	Maximum adjustment 5.50mm, resolution 0.01mm
SENSOR	Low air pressure, presence or absence of wires, abnormal pressure, abnormal entry wires
COMPRESSED AIR	0.5 MPa(5 kgf / cm2) clean dry gas
PRODUCT FEATURES	1.Cutting and stripping, 2.Pressing the end, 3.Cutting off the wire4.Threading and baking,5.Printing the number tube
