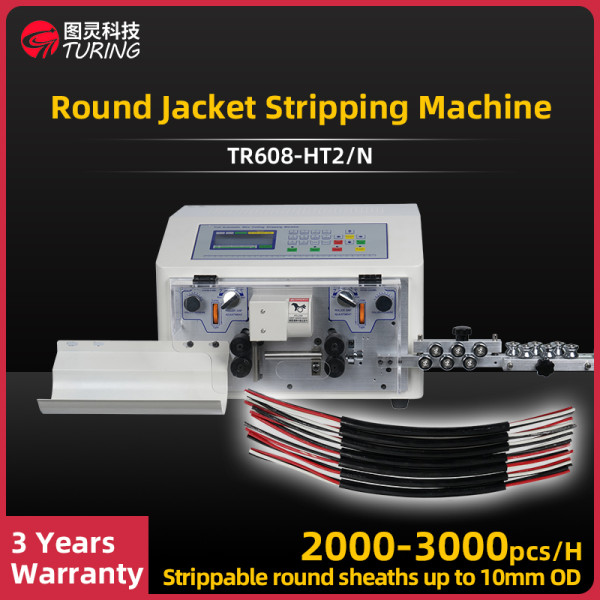

TR-608-HT2/N Round sheath stripping machine with negative straightener wire stripping machine
TR-608-HT2/N Round sheath stripping machine with negative straightener wire stripping machine
Detail Information
TR-608-HT2/N Round sheath stripping machine with positive and negative straightener wire stripping machine
Weight: 31KG
Power supply: AC220/110V/60HZ/50HZ
Motor Power: Rated 450W
Display mode: Chinese and English switching LCD display
Appearance size: 450X420X290
Cutting length: 1～10000mm
Stripping length: 0-150mm half-stripped wire end, 0-100mm half-stripped wire end
Cutting tolerance: ± (0.002xL)mm
Cutting wire core cross-section: The round sheath with a maximum outer diameter of 10mm or less can be stripped
Maximum diameter of conduit: ￠11
Suitable for stripping wire: PVC, Teflon, glass wire
Blade material: hard tungsten steel
Stripping speed: (L=200MM/hour) 2000-3000
Drive mode: four-wheel drive (silent hybrid stepper motor, each step advances 0.1mm)
Wire stripping speed: cutter speed and wire feeding speed can be adjusted separately: 0 is the slowest, 9 is the fastest
The fully automatic computerized wire stripping machine produced byourfactory is widely used in wire harness processingin variousindustriessuch as wire harnesses, automotive electricalappliances, instruments andmeters, lamps, household appliances, etc., such as: single-stranded wire,multi-stranded wire, sheathed wire, etc.The processing methods are: cutting,strippinghead and tail, middle stripping, bending, twisting, etc.Themaximum processingcross-sectional area is 0.1-90mm2, and the maximumlength of the cutting section is 100 meters. The main function of themachineis to strip the plastic sheath and the metal core of the wire.
