TR-508-E/N 8 Square Thick Wire Stripping Machine
TR-508-E/N 8 Square Thick Wire Stripping Machine
Detail Information

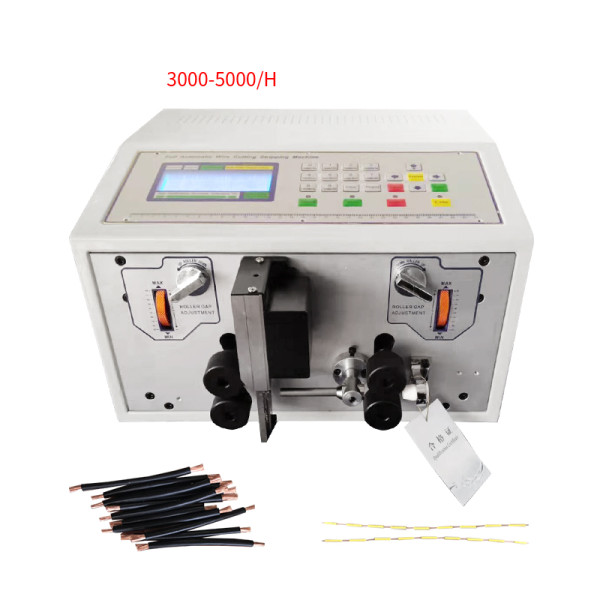

TR-508-E/N 8 Square Thick Wire Stripping Machine
TR-508-E/N 8 square thick wire stripping machine
Model: TR-508-E/N
Weight: 27KG
Power supply: AC220/110V/60HZ/50HZ
Motor power: rated 300W
display mode: Chinese and English switching LCD
Appearance size: 420X390X260
Cutting length: 1～10000mm
Cutting length: thread head 0-35mm, thread tail: 0-15mm
Cutting tolerance: ± (0.002xL)mm
Middle stripping and cutting: thirteen places
Cutting wire core section: 0.1～8mm2
Maximum diameter of conduit: ￠10
Applicable wire stripping: PVC, Teflon, glass wire
Blade material: imported high speed steel
Stripping speed: (L=100MM/hour) 3000-5000
Drive mode: four-wheel drive (silent hybrid stepper motor, each step advances 0.1mm)
Wire stripping speed: cutter speed and wire feeding speed can be adjusted separately: 0 is the slowest, 9 is the fastest
Thefully automatic computerized wire stripping machine produced byourfactoryis widely used in wire harness processingin variousindustriessuch as wire harnesses,automotive electricalappliances,instruments andmeters, lamps, household appliances, etc., such as: single-stranded wire,multi-stranded wire, sheathed wire, etc.The processing methods are: cutting,strippinghead and tail, middle stripping, bending, twisting, etc.Themaximum processingcross-sectional area is 0.1-90mm2, and the maximumlength of the cuttingsection is 100 meters. The main function of themachine is to strip the plastic sheath and the metal core of the wire.
