TR-508-C/N Two-wheel small wire stripping machine

Categories	Computer Wire Stripping Machine
Brand	Turing
Model	TR-508-CN
Power	AC220V/50HZ,
Name	wire stripping machine
Feature	Stable Performance
Warranty	1year
Contact	Lily 0086-13715588365
FOB port	shenzhen ,guangzhou ,zhongshan
Terms of Payment	Western Union, MoneyGram, T/T
Download
Update Time	Nov 21,2024

Contact Now

Favorites

Detail Information

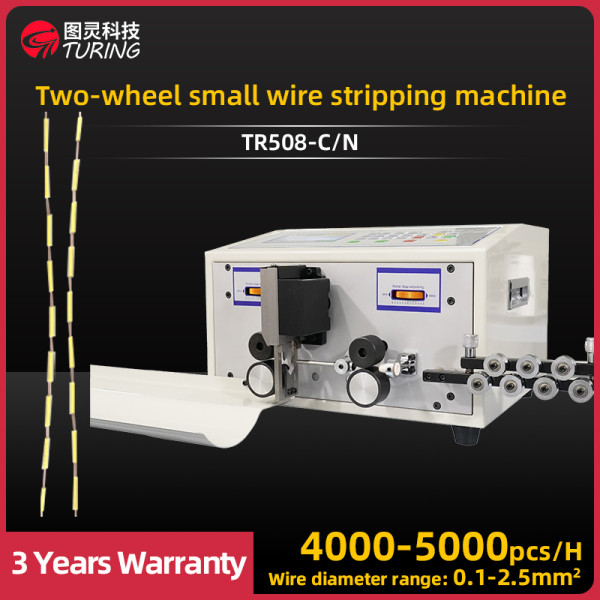

TR-508-C/N Two-wheel small wire stripping machine

Weight: 25KG

Power supply: AC220/110V/60HZ/50HZ

Motor power: rated 200W

Display mode: Chinese and English switching LCD display

Appearance size: 420X390X260

Cutting length: 1～10000mm

Stripping length: thread head 0-30mm, thread tail: 0-15mm

Cutting tolerance: ± (0.002xL)mm

Middle stripping and cutting: thirteen places

Cutting wire core section: 0.1～2.5mm2

Maximum diameter of conduit: ￠6

Suitable for stripping wire: PVC, Teflon, glass wire

Blade material: hard tungsten steel

Stripping speed: (L=100MM/hour) 4000-5000

Drive mode: two-wheel drive (silent hybrid stepper motor, each step advances 0.1mm)

Wire stripping speed: cutter speed and wire feeding speed can be adjusted separately: 0 is the slowest, 9 is the fastest

The fully automatic computerized wire stripping machine produced byourfactoryis widely used in wire harness processingin variousindustriessuch as wire harnesses,automotive electricalappliances, instruments andmeters, lamps, household appliances, etc., such as: single-stranded wire.multi-stranded wire, sheathed wire, etc.The processing methods are: cutting,strippinghead and tail, middle stripping, bending, twisting, etc.Themaximum processing cross-sectional area is 0.1-90mm2, and the maximumlength of the cuttingsection is 100 meters. The main function of themachine is to strip the plastic sheath and the metal core of the wire.
