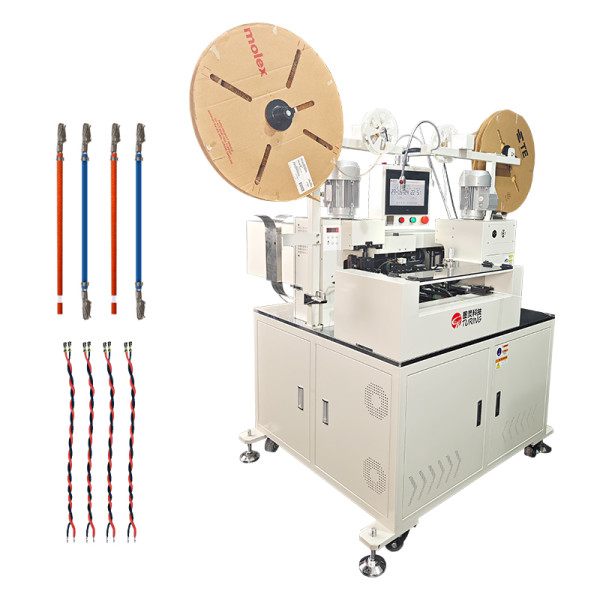

TR-PX1 Fully automatic high-speed cable double-head terminal crimping machine
TR-PX1 Fully automatic high-speed cable double-head terminal crimping machine
Detail Information
Fully automatic high-speed cable double-head crimping machine
Fully automatic high-speed cable double-head crimping machine
Product features: double-head pressure end
Cost saving: double-head crimping end, all processes are completed automatically, saving production costs for customers.
Good stability: The pressing end adopts eccentric shaft and cam structure, the terminal pressing force is balanced, the terminal pressing is neat, and the consistency is good.
High precision: Servo machine is used to control cutting, splitting and peeling, positioning of pressing end, and accurate positioning.
Simple operation: touch screen operation, easy parameter setting and operation, easy to understand at a glance, ordinary employees only need simple training, and one person can operate several devices.
Model No. |
TR-PX1
|
Power Supply |
AC220V 50/60HZ
|
Funtion |
Wire cutting, single end peeling.double end peeling, single endpressing, double end pressing.single end threading, double end threading
|
Capacity | 800 pcs/hour for cable 12P (depending on wire) |
Processing Model |
AWG#30-AWg #18 for cable type , 26#-18# for electric wire
|
Cutting Length | 45mm-1000mm(change the minimum cutting length according to the peeling size) |
Cutting Tolerance | Variation range: 1mm+ cut length lessthan 0.1% |
Front and end stripping Length | 0mm-8mm |
Max Wire Width | 28mm |
Air Pressure | 0.4-0.6 MPa clean and dry air |
Machine Size | 1920*1520*1750mm |
Weight | 600kg |
Special Function | Two or more lines can be processed at the same time (including two Electronic wires can simultaneously process 12 (maximum) crimping at both ends, crimping at one end, crimping at intervals, and crimping with phase rotation. The middle segment (4 stages) Half-peelable back end Replaceable mold |
